How to Make Magento Search Better

Posted Oct 30, 2014 by

Magento, by default uses MySql full text, like, or combined search.Search keywords

Most full text search implementations use an “inverted index.” This is an index where the keys are individual terms and the associated values are sets of records that contain the term. Full text search is optimized to compute the intersection, union, etc. of these record sets, and usually provides a ranking algorithm to quantify how strongly a given record matches search keywords.

The SQL LIKE operator can be extremely inefficient. If you apply it to an un-indexed column, a full scan will be used to find matches (just like any query on an un-indexed field). If the column is indexed, matching can be performed against index keys, but with far less efficiency than most index lookups. In the worst case, the LIKE pattern will have leading wildcards that require every index key to be examined. In contrast, many information retrieval systems can enable support for leading wildcards by pre-compiling suffix trees in selected fields.


What this means is that searching for a term like “Teve” if it is the name of a product, what also hit for results with the word “whatever.” You get the idea. Although Magento search is notoriously terrible because of this, there are some ways to make the search results a little more relevant if you know which attributes the system is using to index for search and where it indexes the data.  With this information, you can then suggest better ways to set up your indexable data to make the best out of full text search.

I.  System and Attribute Configuration:

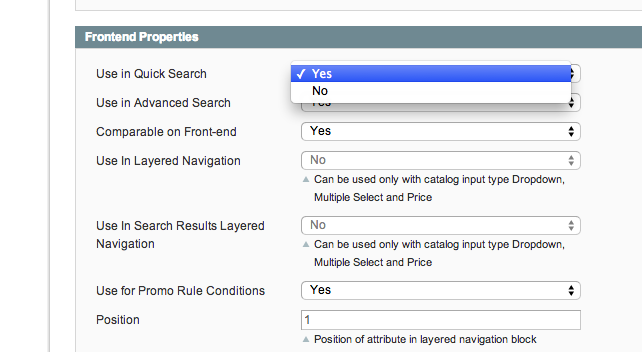

In Catalog->Manage Attributes you can set the Use in Quick Search to Yes or No to index this particular attributes information.



In System->Configuration Under Catalog -> Catalog Search is where you can set basic settings for search.


II. Database

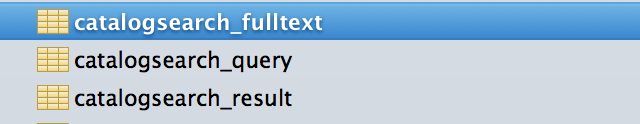

In the database, magento uses three tables to store search information:

1) catalogsearch_fulltext
2) catalogsearch_query
3) catalogsearch_result

The most important of these tables (in my opinion) is the catalogsearch_fulltext because this is where Magento stores the indexed data from all attributes where Use In Quick Search is set to ‘Yes’

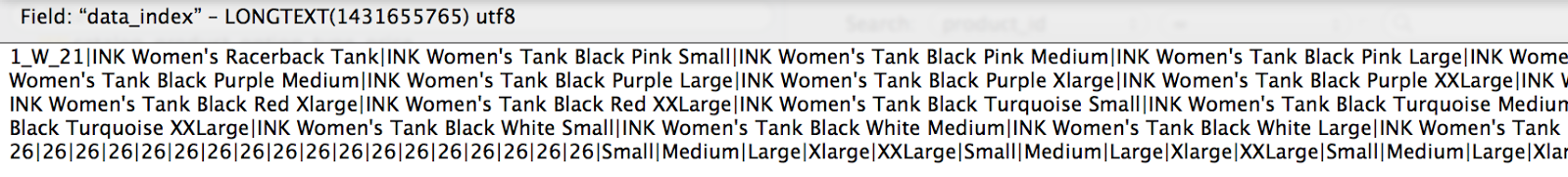

Data index value sample:


III. Code

This is the entry point for catalogsearch, specifically, the indexAction.



Is where the query object is built and the index is referenced.

$query = Mage::helper(‘catalogsearch’)->getQuery();


If you want to find where the index events actually get built you would look at:



The System->Index Management actions pass through this class where there are directed to their Modules resource model to build and set the data.


In the case of the CatalogSearch Index Process, this happens in:


III. How this knowledge helps

If you have a bunch of customers searching for product names, then having descriptions, short descriptions, and other text fields as indexed data, MySql will likely provide a result collection that is too large, and full of data that is making matches on pieces of sentences that are not relevant to the search.

A easy way to work around this is to make the product name the only indexable data for a product.

Obviously, this won’t work for all examples, but it is a way to make the Magento search more useable without the overhead of a service like Solr. Further, if you know the way this works, you can instruct product managers to name their products appropriately to help further improve search results. Keep in mind that for configurable products, Magento will index all of the simple products into the data_index as well.

Tags: Magento, Search

Posted By

Director of Development

Comments (2)


Hello, I am Brazilian and I have a problem that I have already searched in several forums and there is no direct answer to the question, only wrong explanations and no conclusions. My quick search does not return any product, already in the advanced search when I put the name of the product it appears normal. I've done everything. I saw that nothing appears in the catalogsearch table of the database, believe that is there the problem, this table does not record any results, but how could it solve? Any tips?

    Paul Briscoe posted

    Hi -- Are you sure that your quick search form is posting to the core search controller or is there a 3rd party module or custom coded module in play? You might also want to just verify that under System Configuration -> Advanced -> Advanced that the Magento_CatalogSearch is enabled. I guess it probably is based on the Advanced Search working, but maybe just to verify. Also check the search type that you have enabled in the admin under Catalog Search. If that is set to use Mysql Full Text, then I would suggest that you put in a Mage::log or breakpoint in the search controller to verify that your POST is getting into there. From there you could further determine the path your request is taking into your application. Also worth mentioning, that if it is hitting the core search module, you should see results getting entered into the `catalogsearch_query` table. I'm assuming you're on a Magento 1.x CE version and not using Solr or anything like that.
